- Choose a chart type.

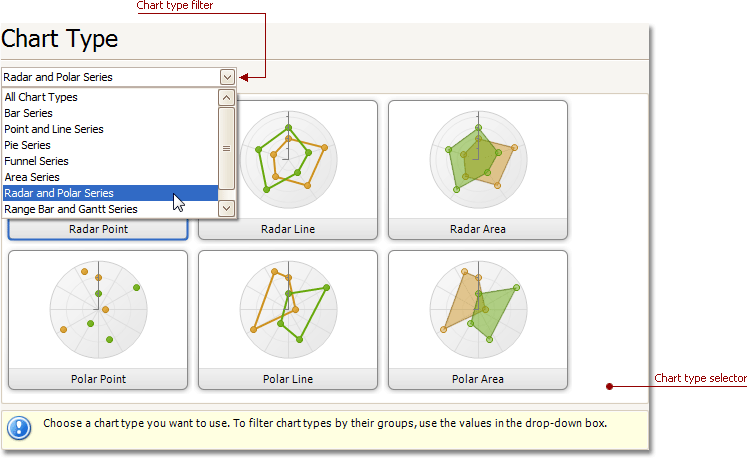

Chart type selector
Contains icons representing chart types. Click an icon to choose the appropriate chart type.
Chart type filter
Filters chart types available in the Chart type selector. The following chart filters are available:
- All Chart Types.
- Bar Series (Bar, Stacked Bar, 100% Stacked Bar, 3D Bar, 3D Stacked Bar, 3D 100% Stacked Bar and Manhattan Bar).
- Point and Line Series (Point, Bubble, Line, Scatter Line, Swift Plot, Step Line, Spline, 3D Line, 3D Step Line and 3D Spline).
- Pie Series (Pie, Doughnut, 3D Pie and 3D Doughnut).
- Funnel Series (Funnel and 3D Funnel).
- Area Series (Area, Stacked Area, 100% Stacked Area, Spline Area, Spline Area Stacked, 100% Stacked Spline Area, 3D Area, 3D Stacked Area, 3D 100% Stacked Area, 3D Spline Area, 3D Spline Stacked Area and 3D 100% Stacked Spline Area).
- Radar and Polar Series (Radar Point, Radar Line, Radar Area, Polar Point, Polar Line and Polar Area).
- Range Bar and Gantt Series (Range Bar, Side by Side Range Bar, Gantt and Side by Side Gantt).
- Financial Series (Stock and Candle Stick).
